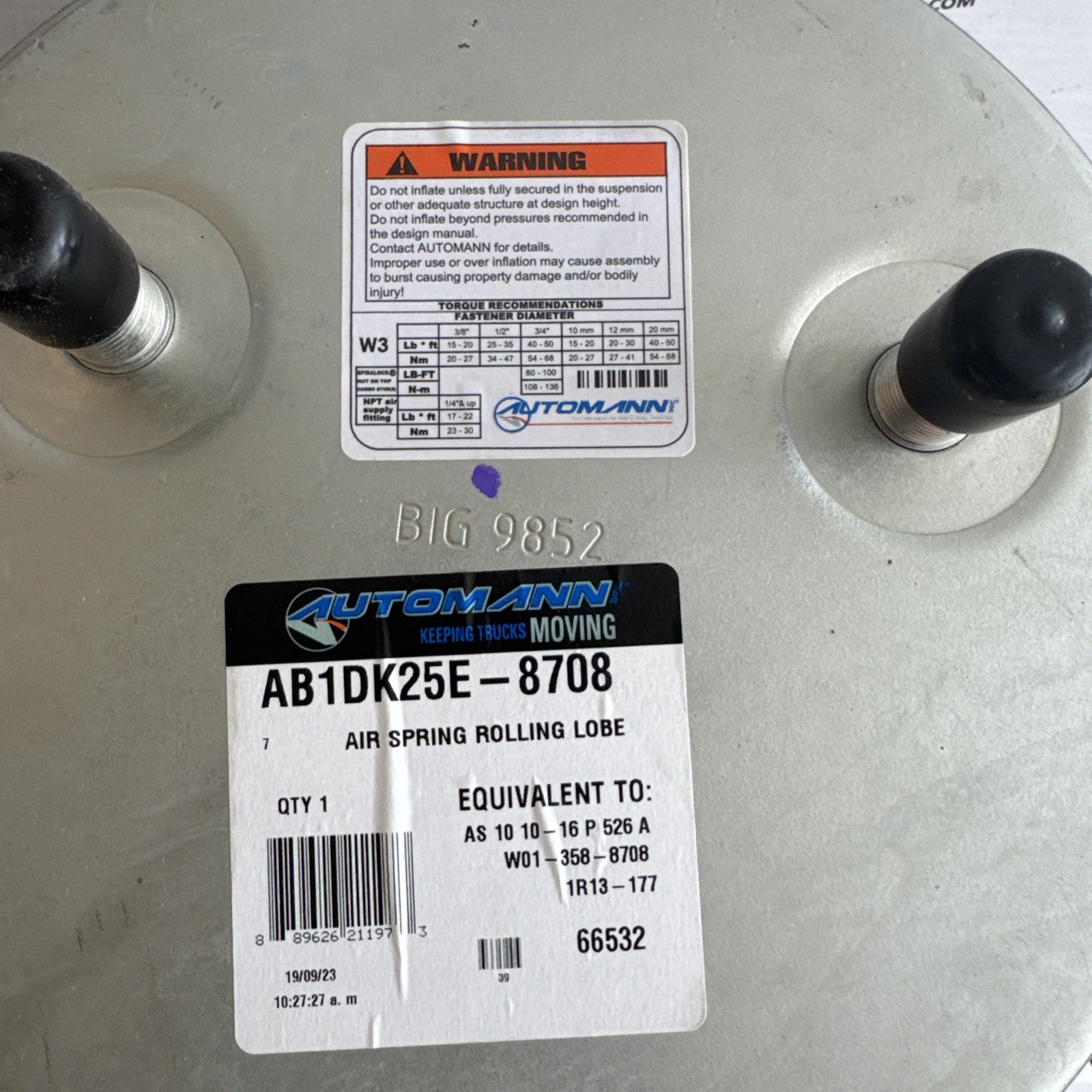

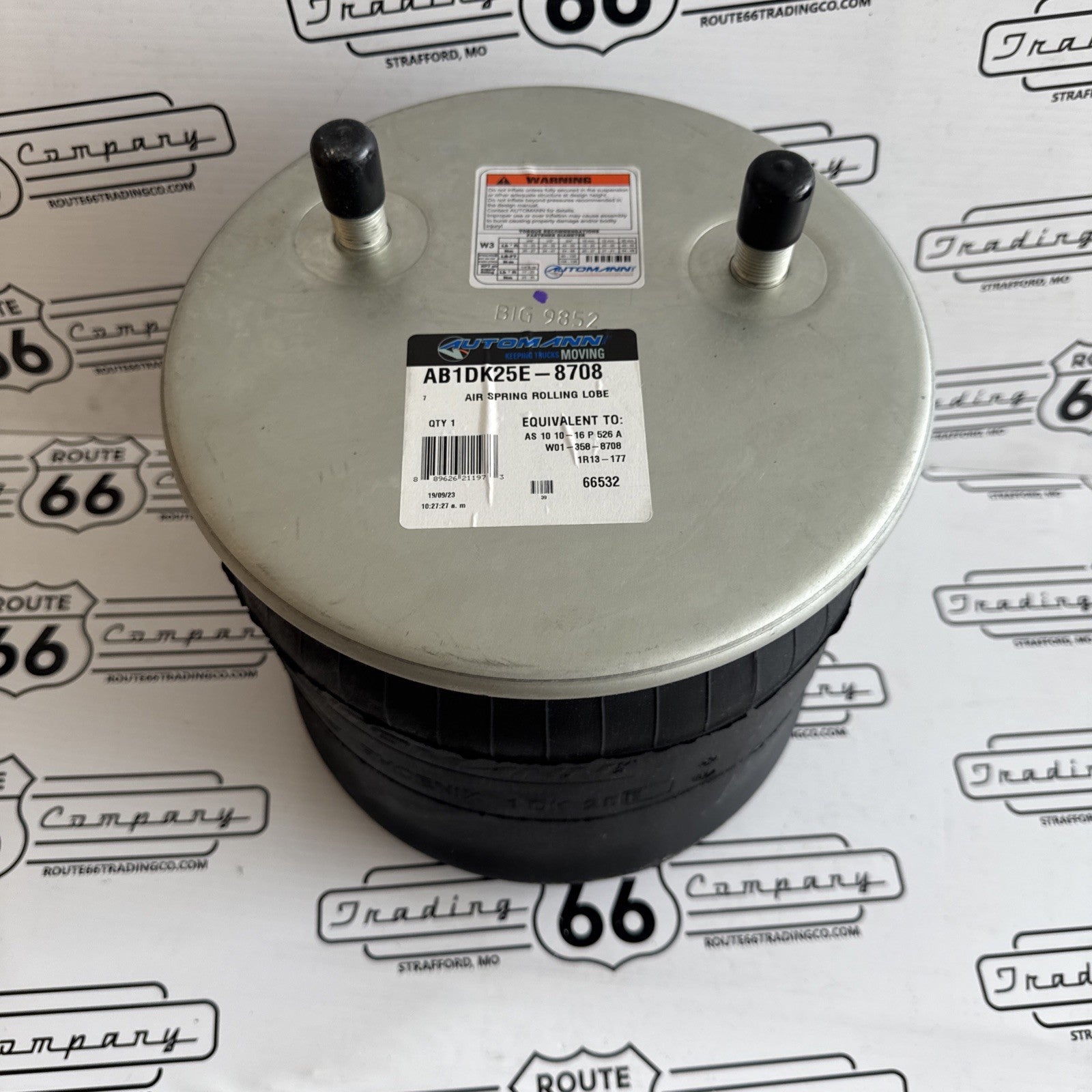

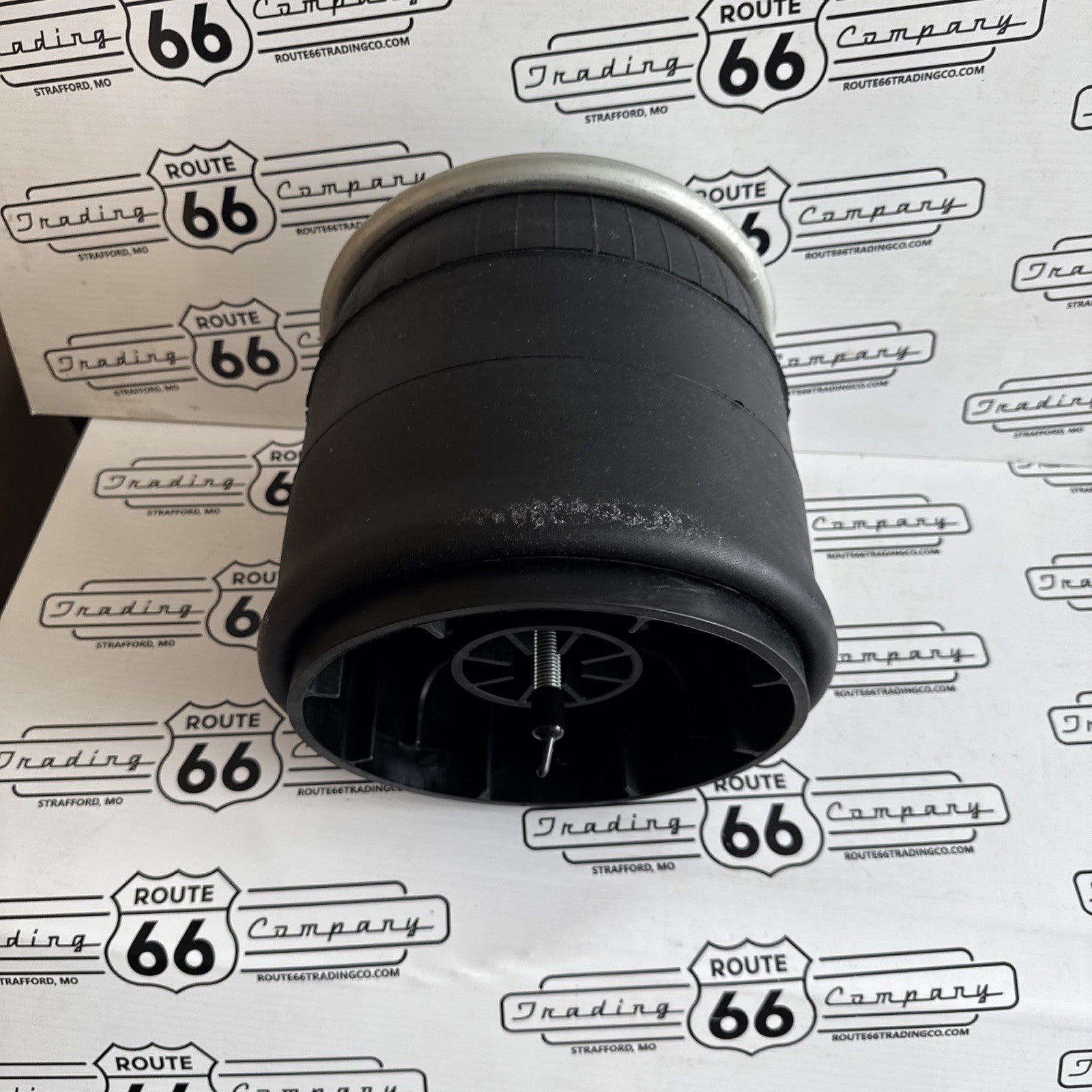

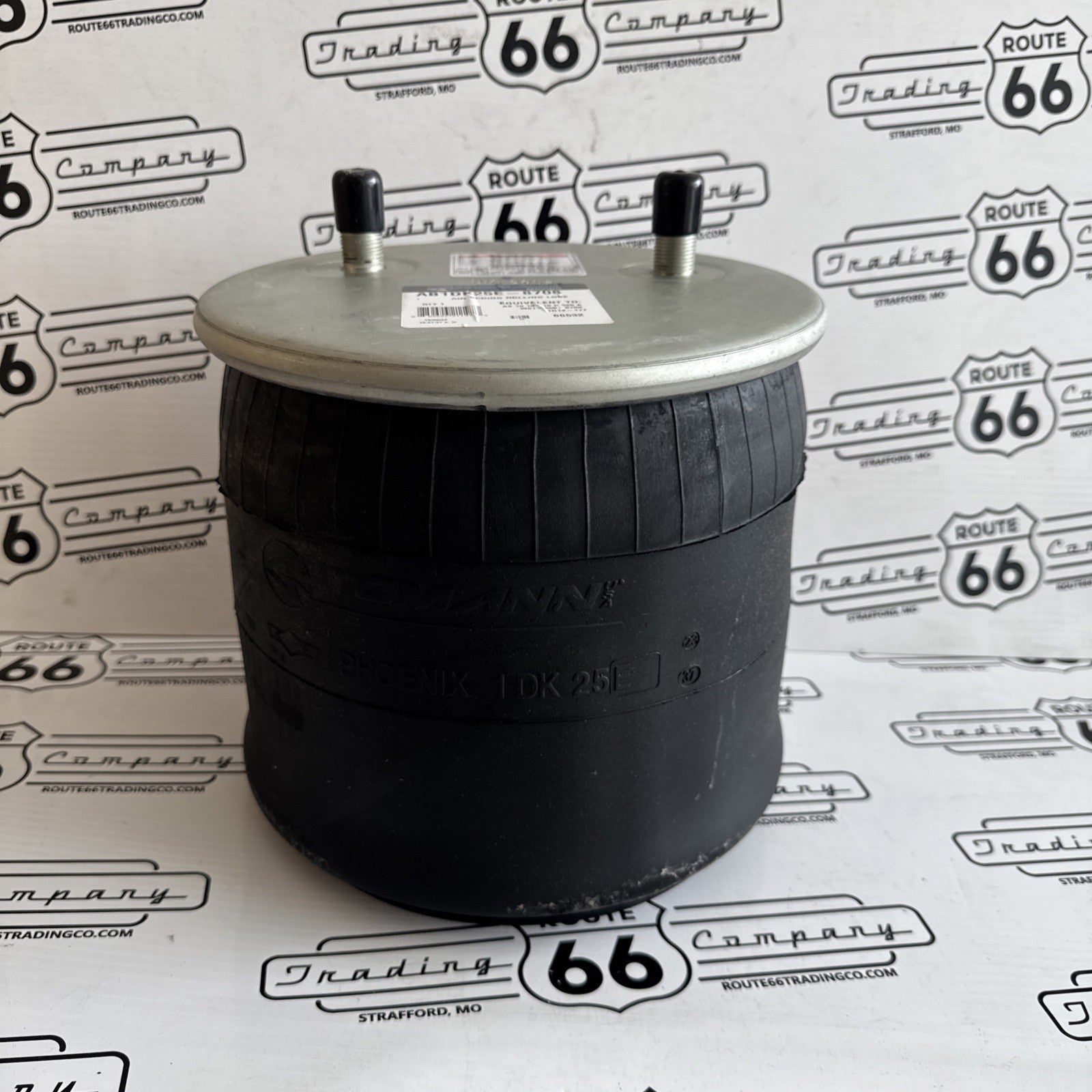

Automann AB1DK25E-8708 Air Spring Rolling Lobe

SPECIFICATIONS

Attribute Value
Type Rolling Lobe
Automann Bellows# 1DK25E
Firestone Bellows# 1T17CA-6.5
Goodyear Bellows# 566-26-3-080
Contitech Bellows# 10 10-16
Triangle Bellows# 6382
Load (Lbs) @80 PSI 6760
Load (Lbs) @100 PSI 8450
Natural Freq. (CPM) 75
Design Height (In) 11.00

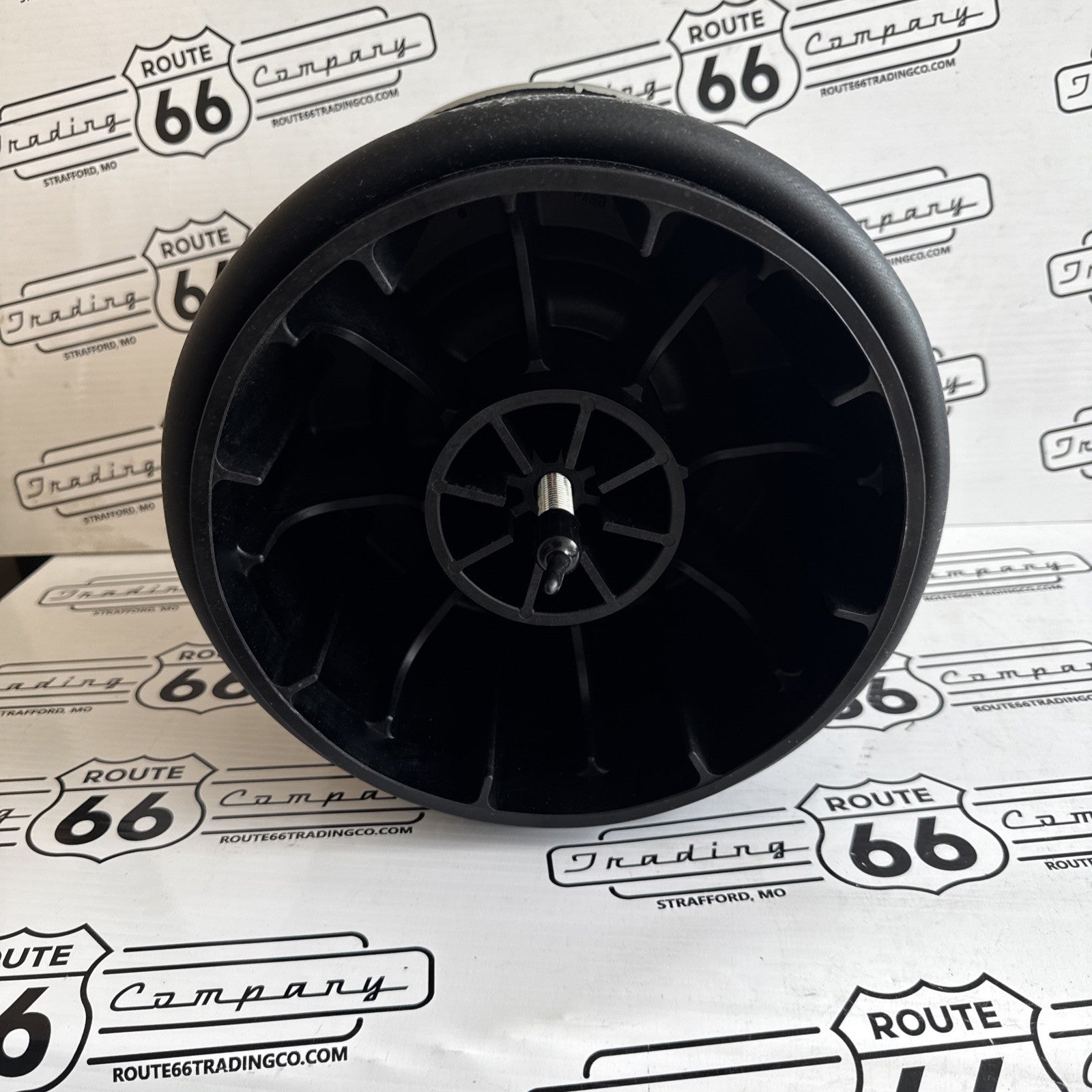

Bottom Plate Type Plastic
Top Plate Hole/Stud Qty 2
Top Plate Dia. (A) 10.20
Top Plate C to C Dia. (B) 5.50
Bottom Plate Hole/Stud Qty 1
Bottom Plate Dia. (C) 9.09
Bottom Plate C to C Dia. (D) N/A
Bottom Part # BS15733
Bumper Yes
Bracket N/A
Min. Height 8.50
Max. Height 20.50
Max. Dia. 13.70
